AIB-NINX-SC
Ultra Compact Business Card Size AI Edge Platform
- Powered by NVIDIA® Jetson Orin™ NX up to 100 / 70 TOPS
- Business Card Size ( 90mm×55mm )
- 1×USB3.2 Gen2
- 1×Mini DisplayPort
ProductSpecification
System Information
-
System Memory
NVIDIA Jetson Orin™ NX 8GB
8GB LPDDR5/
NVIDIA Jetson Orin™ NX 16GB
16GB LPDDR5 -
Processor
NVIDIA Jetson Orin™ NX 8GB
6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
1.5MB L2 + 4MB L3 /
NVIDIA Jetson Orin™ NX 16GB
8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
2MB L2 + 4MB L3
AI Performance
-
AI Performance
NVIDIA Jetson Orin™ NX 8GB
70 TOPS/
NVIDIA Jetson Orin™ NX 16GB
100 TOPS
Storage
-
M.2
1×M.2 2230 M Key PCIe Gen4×2 Slot
1×M.2 2230 E Key PCIe Gen4×1 Slot -
Storage
128GB NVMe
1×Micro SD Card Slot
Ethernet
-
Ethernet Interface
1×RJ45 for 10/100/1000Mbps Ethernet
DHCP Client
Development Environment
-
OS
Ubuntu: 20.04
-
Kernal
5.10.104-tegra or Higher
-
BSP
Linux for Tegra(L4T) R35.3.1 or Higher
-
SDK
JetPack 5.1.1 or Higher
External I/O connector
-
USB
1×USB3.2 Gen2 ( Type-C )
-
Network
1×RJ45 for 10/100/1000Mbps Ethernet
DHCP Client -
Display
1×Mini DP1.4
-
MIPI
Default:
2×4MIPI CSI-2 Lanes ( D-PHY 2.1, Support MIPI Camera, Capture Card )
Option:
4×2MIPI CSI-2 Lanes ( D-PHY 2.1, Support MIPI Camera, Capture Card ) -
Peripheral Communication
10 Pin Header
1×USB2.0
4×GPIO
1×I2C
3 Pin Header
1×UART
2×6 Pin Header
3×GPIO
1×RS485
1×I2C

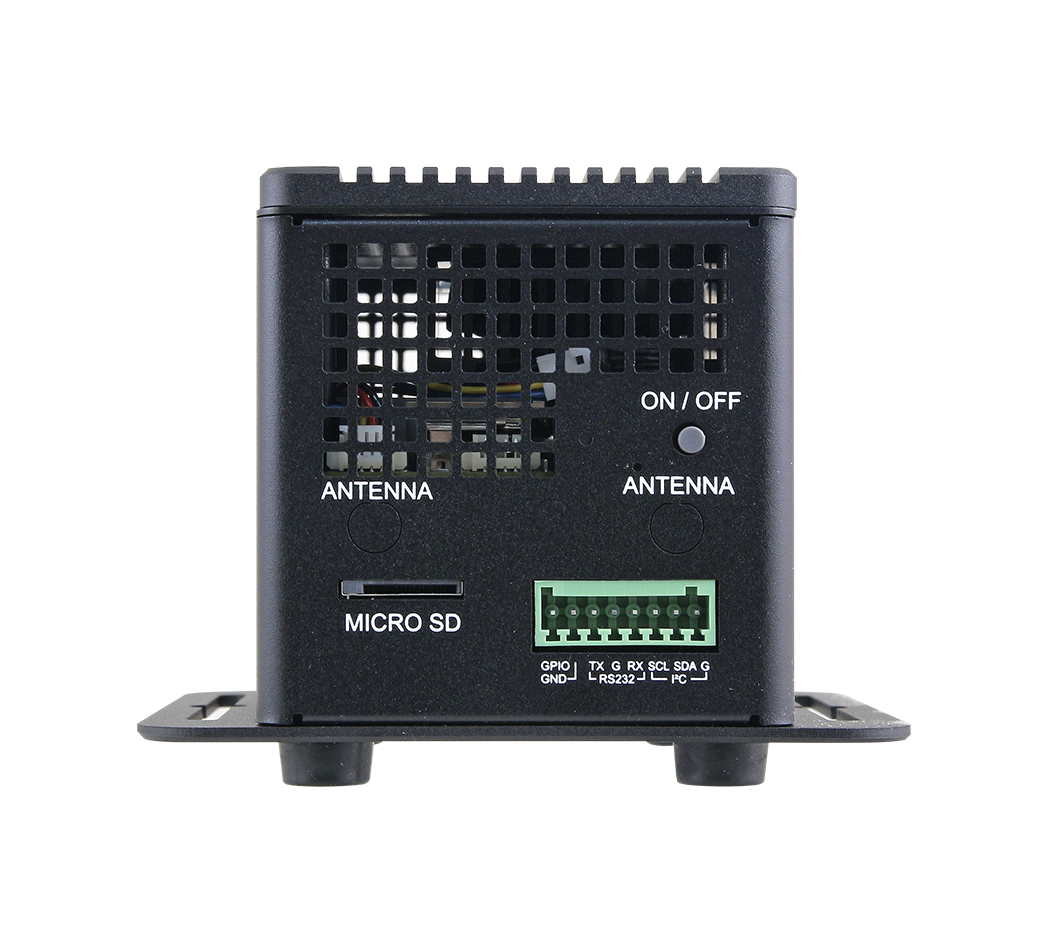

8 Pin Phoenix Connector
1×GPIO
1×RS232
1×I2C -
Misc. Features
Firmware Upgradable
Mechanical & Environmental
-
Dimension of main case
94.4 mm x 66 mm x 69.8 mm
-
Dimension of main board
90 mm x 55 mm
-
Power Requirement
DC 9~36V
-
Operating Temp.
Standard Version: 0~60。C with Airflow
-
Storage Temp.
-20~80。C
Optional Product Features Extension by Daughter Board
-
SDK / Software
By request
-
4K60 12G-SDI
1×12G-SDI In & Loop
-
12G-SDI QL 1×4K60 / 2×4K30 / 4×HD60
1×12G-SDI | 2×6G-SDI | 4×3G-SDI In
Single-Link, Dual-Link, Quad-Link Support -

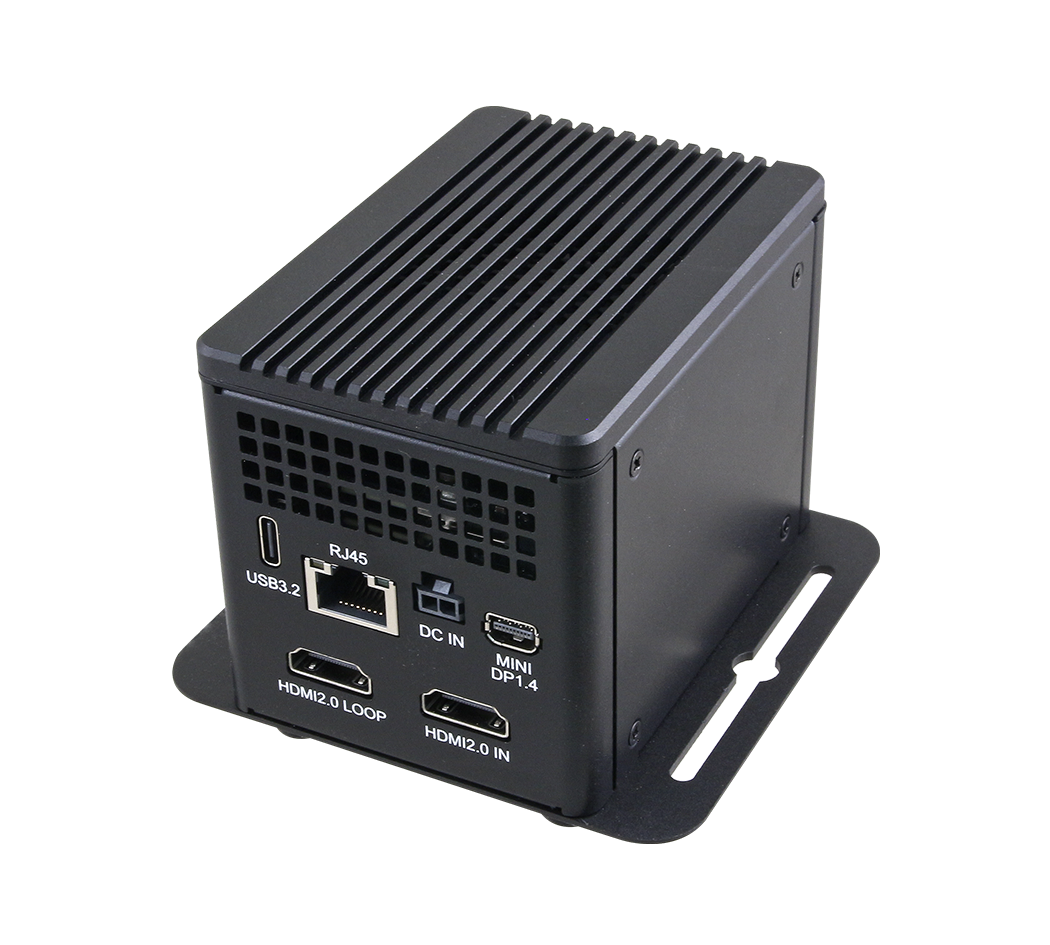

4K60 HDMI2.1
1×HDMI2.1 In&Loop
-

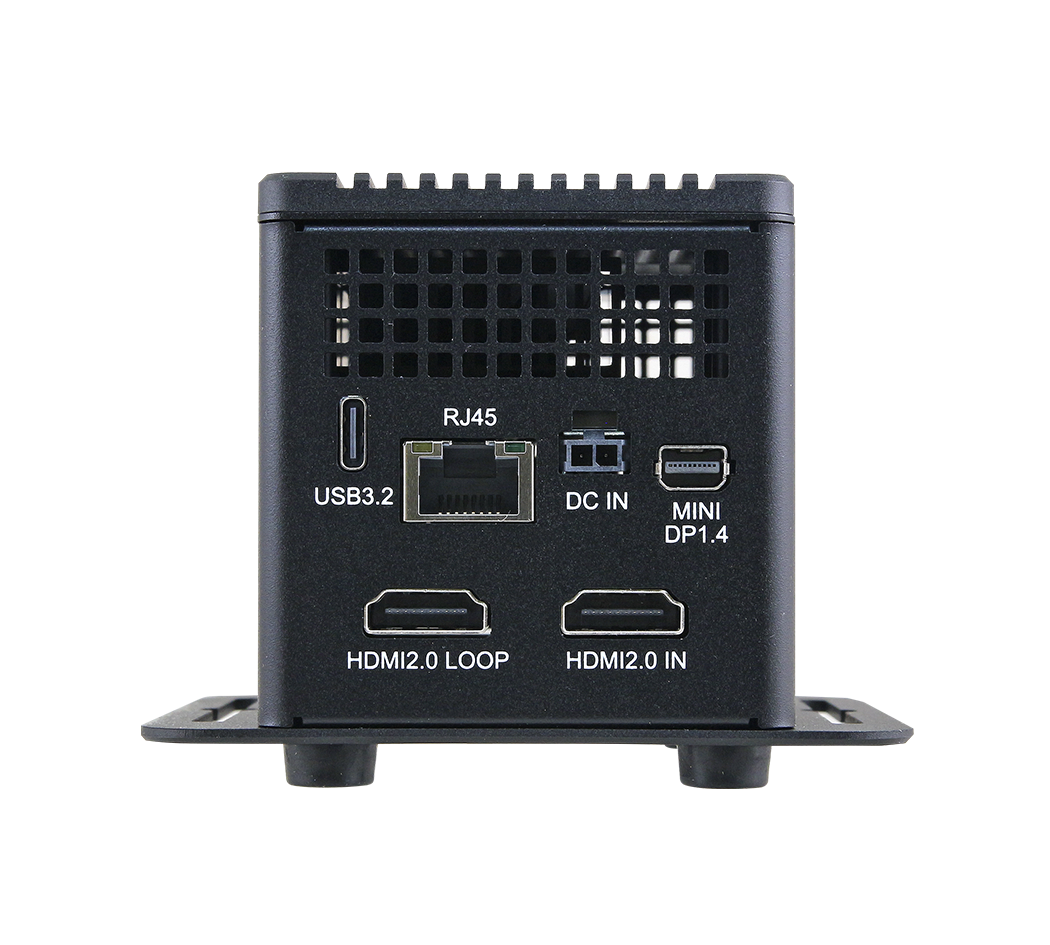

4K60 HDMI2.0
1×HDMI2.0 In&Loop
-

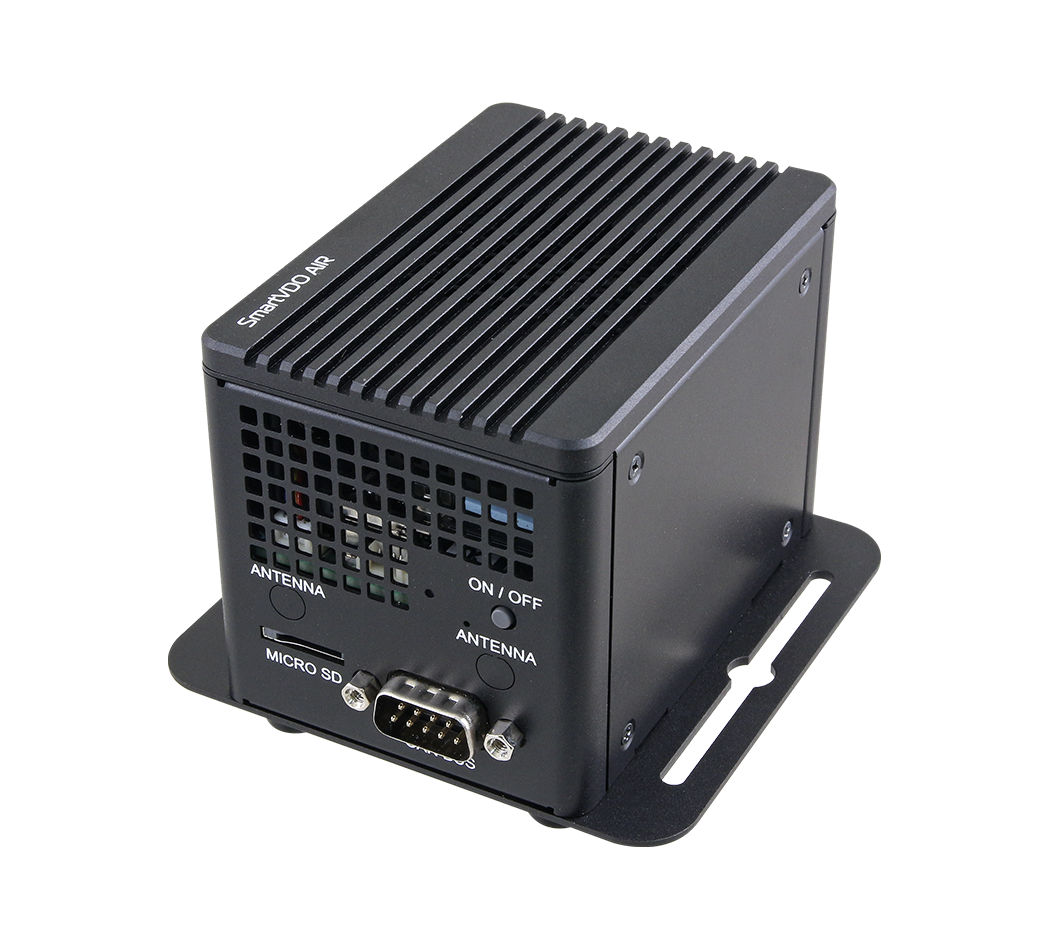

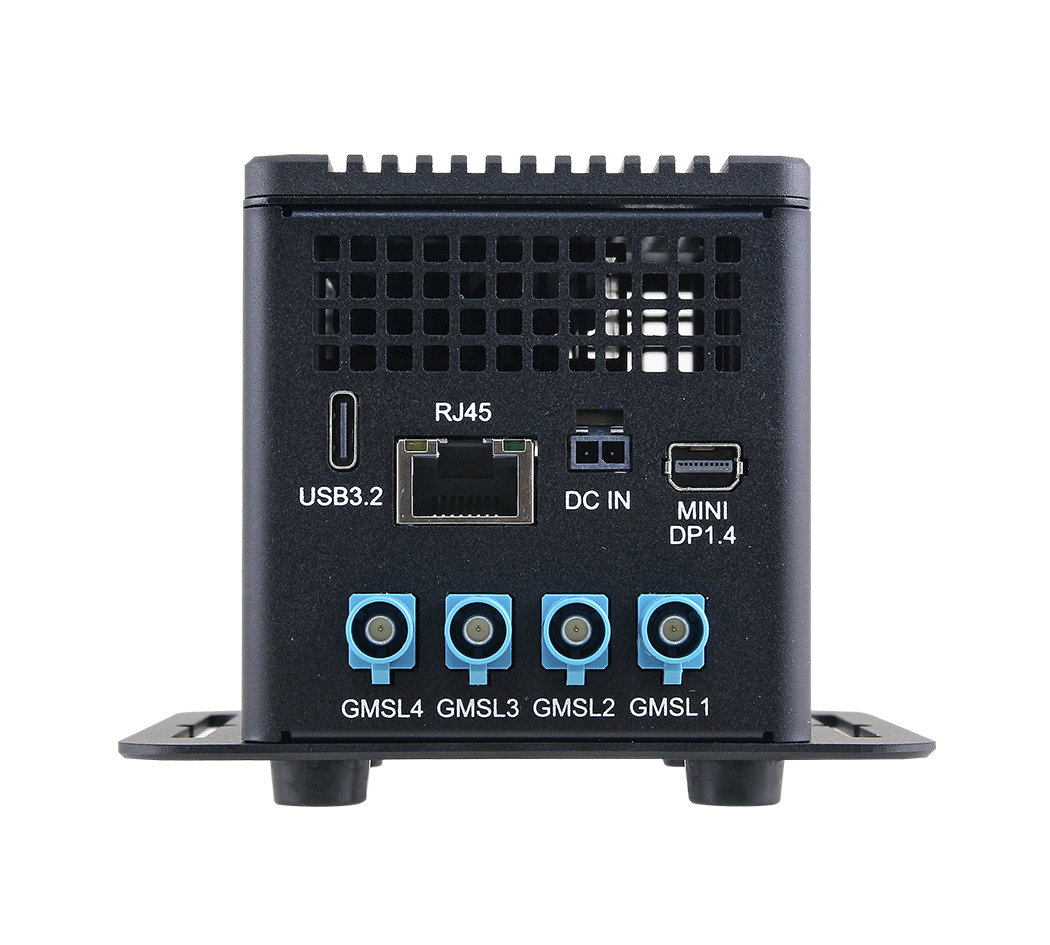

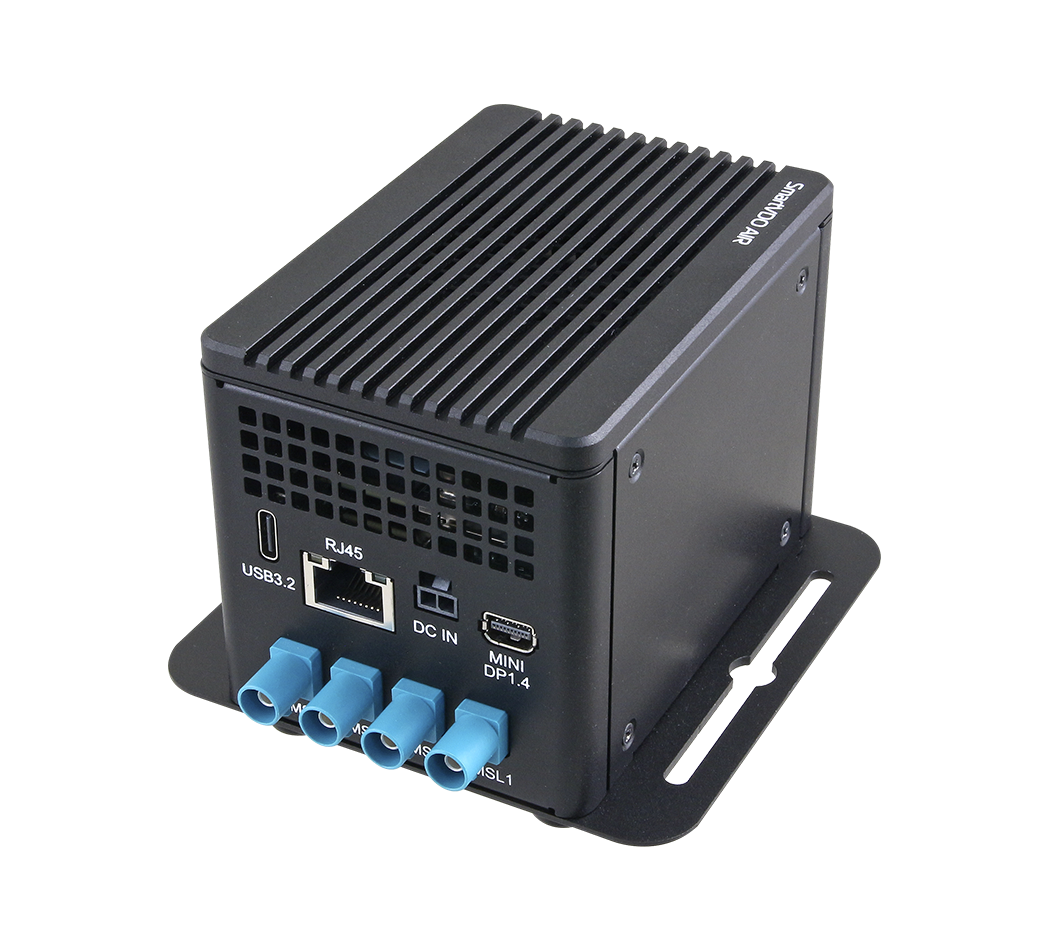

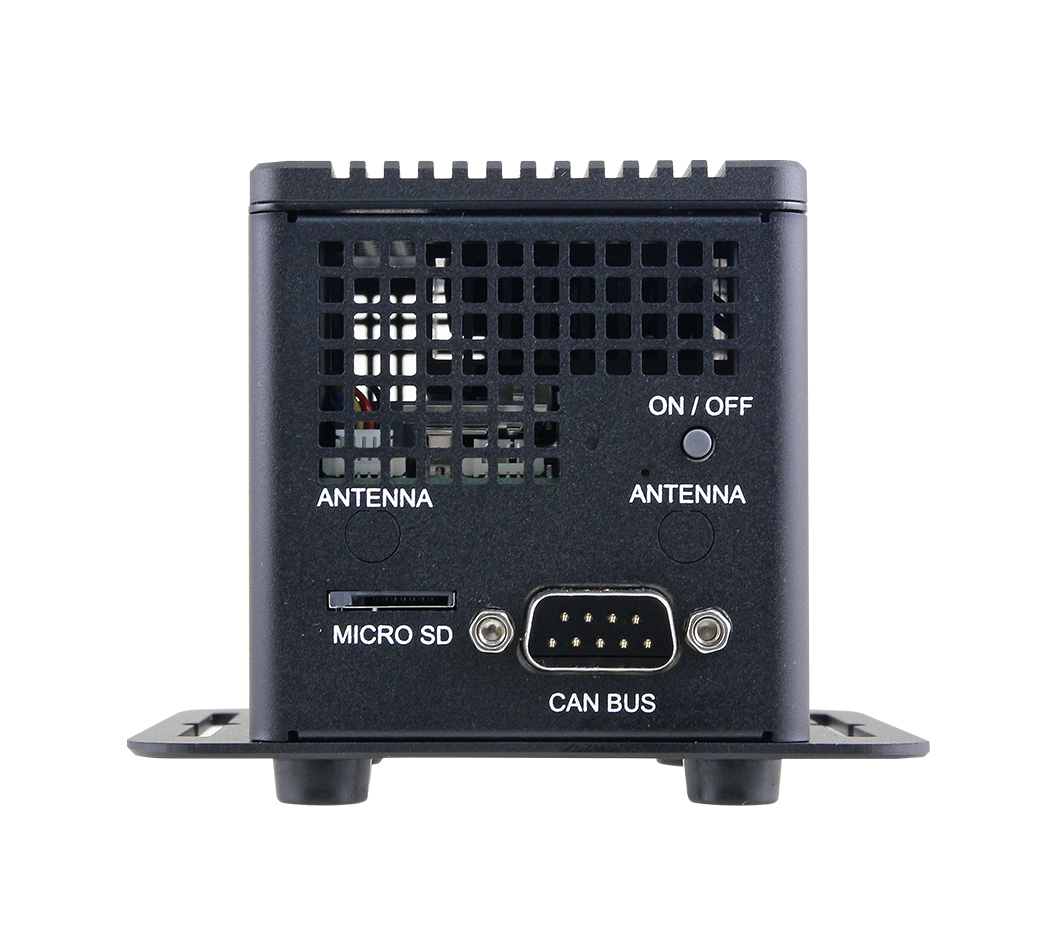

HD60 GMSL2 and CAN Bus
4×GMSL2 In
1×CAN Bus -
4×TVI
4×TVI In
-
HD60 4×HDMI
4×HDMI
-
4×USB3.2-A
1×USB3.2 Gen2, 4×USB3.2 Gen1
