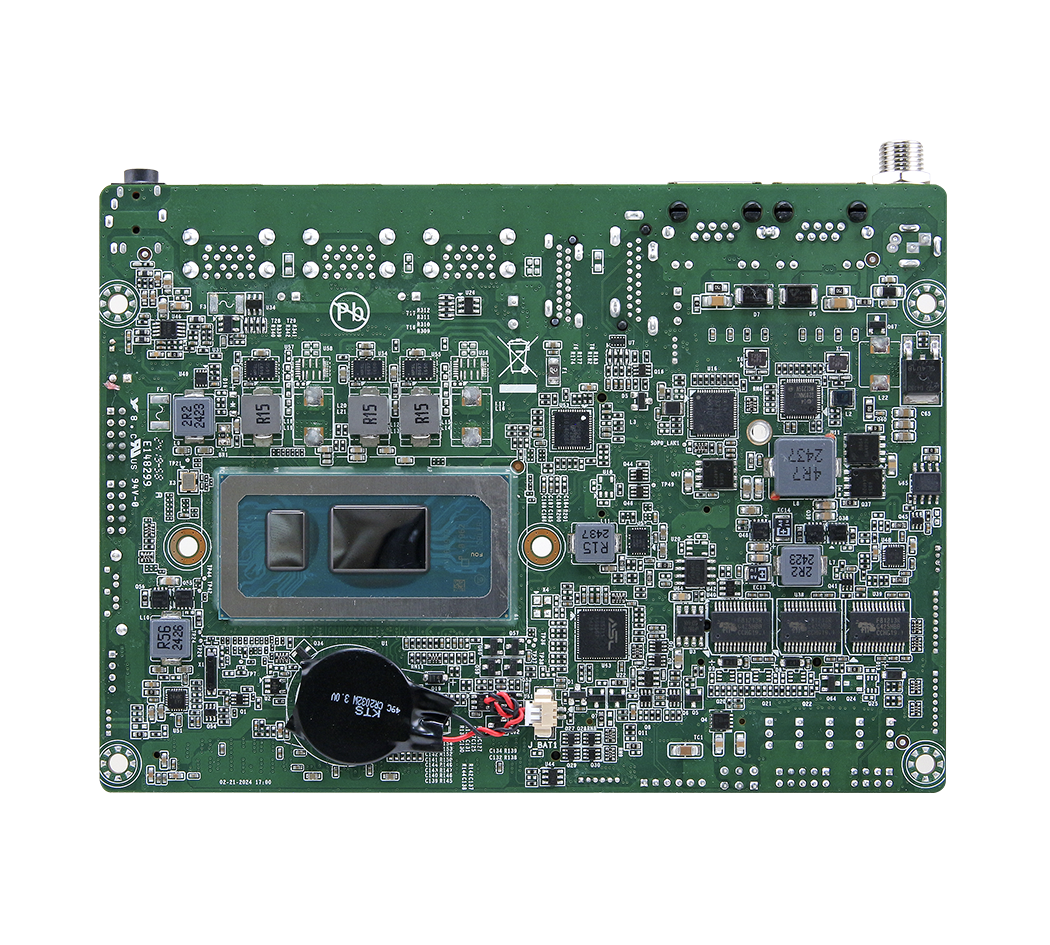

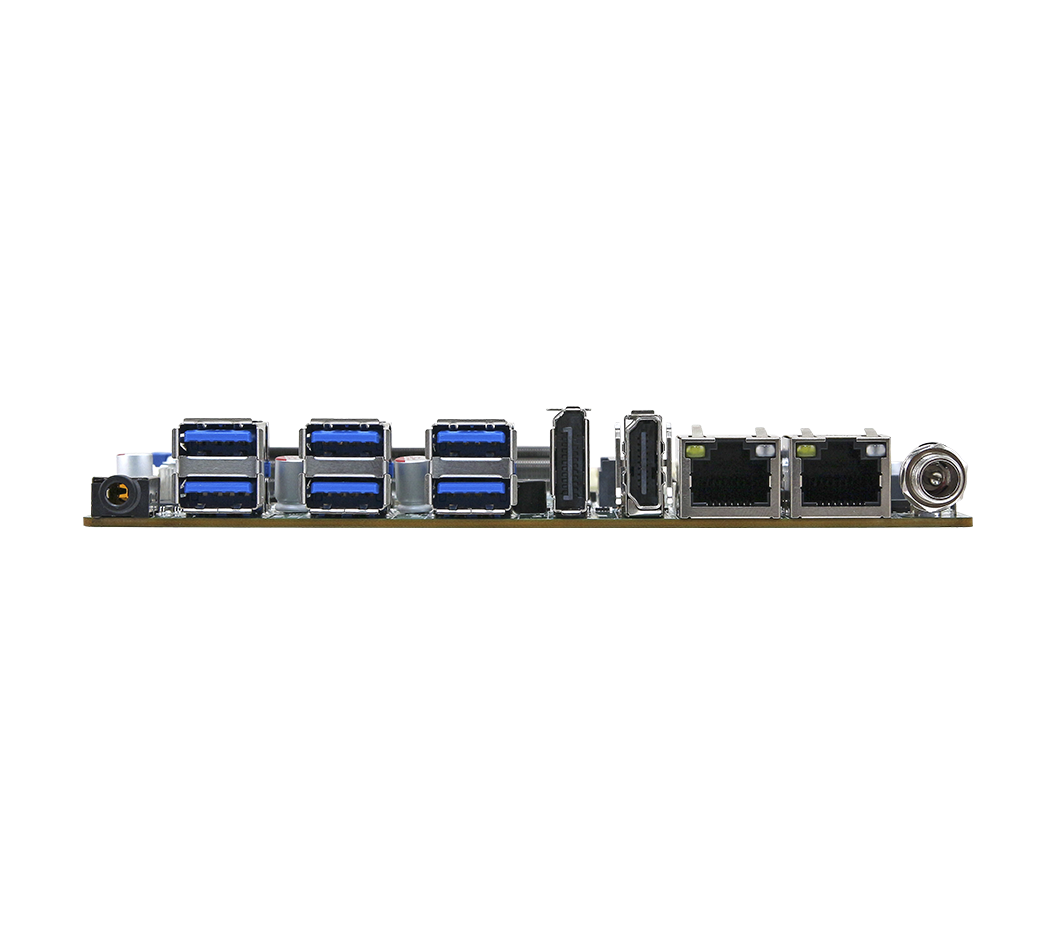

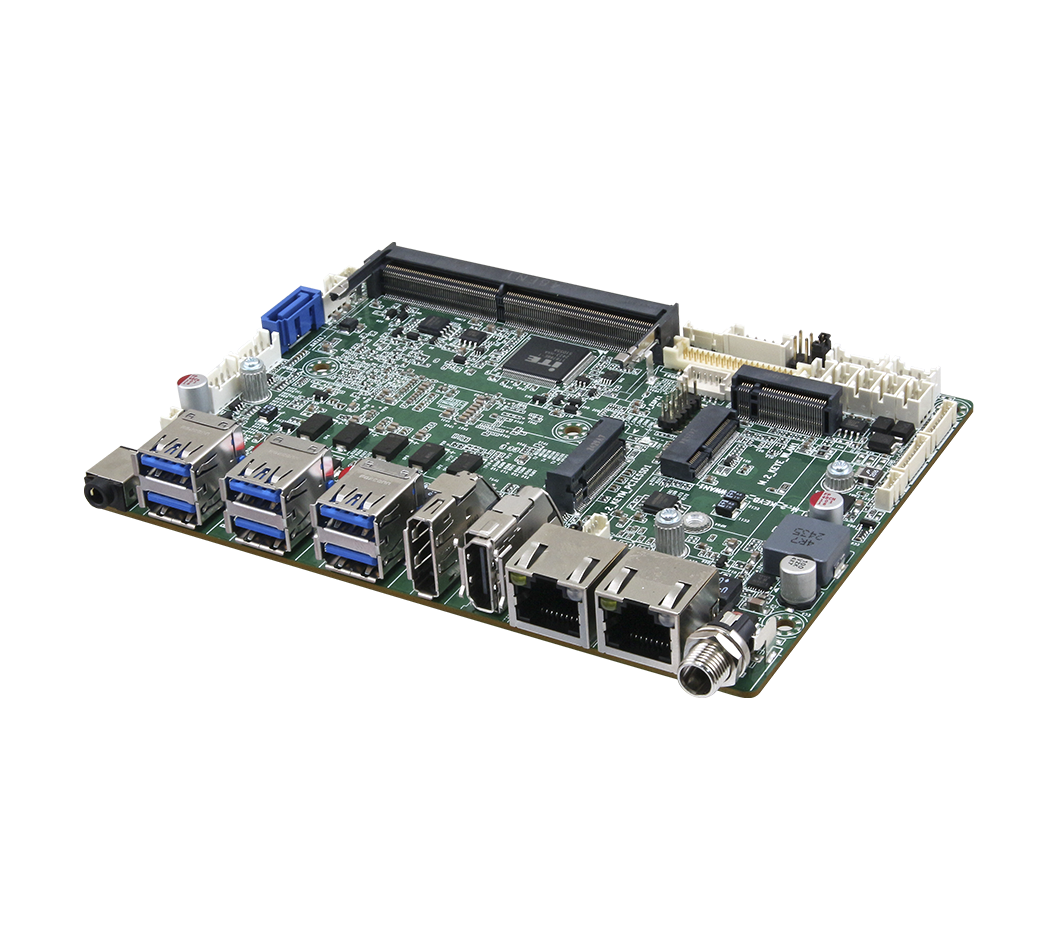

Processor

12th Gen. Intel® Core™ SoC i5/i3 BGA Processor, support Up to 15W Max

System Memory

1 x 260-Pin DDR4 3200MHz non-ECC SO-DIMM Socket, Supports up to 32GB

I/O Chipset

ITE: IT8786E-I

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

BIOS

AMI uEFI BIOS, 128Mbit SPI Flash ROM

H/W Status Monitor

CPU temperature monitoring, Voltage monitoring, CPU fan speed control

TPM

fTPM

Board

3.5-inch SBC (146mm x 105.1mm)

Expansion

1 x M.2 Key-B 2242/3052 with USB3.2 Gen1x1 or PCIe x1 Signal, SIM card wafer for LTE/IO Cards support WWAN+GNSS or PCIe x1 SSD, and USB2.0.
1 x 6 pin, pitch 1.25mm wafer connector for SIM Card (J_SIM1)

1 x M.2 Key E 2230 support Wi-F module (1 x PCIe x1 Signal)

1 x M.2 Key-M 2280 (PCIe x4/SATA) slot for storage NVMe/SATA SSD
*Default PCIe x4.

Storage

1 x M.2 Key-M 2280 (PCIe x4/SATA) slot for storage NVMe/SATA SSD
*Default PCIe x4.
1 x SATA III

Graphic Chipset

Iris® Xe Graphics CPU integrated

Spec. & Resolution

1 x HDMI 2.0: 2048 x 1080@60 Hz
1 x DP++: Max: 4096 x 2340@60 Hz
1 x LVDS: 1920 x 1200@60 Hz Dual channel 18/24-bits

Multiple Display

Triple Display

LVDS

1 x LVDS: 1920 x 1200 Dual channel 18/24-bits LVDS (CapStone CS5211)

Audio Codec

Realtek ALC897 HD Audio Decoding Controller

Audio Interface

Line-out + Mic-in 2in1 3.5mm Jack on rear I/O

Audio Amplifier

Nsiway NS4150B Mono Class-D 3W 4Ω x 1

LAN Chipset

1 x Intel® i226V Gigabit Ethernet Controller
1 x Intel® WGI219V Gigabit Ethernet Controller

Ethernet Interface

10/100/1000/2.5G Base-Tx GbE compatible

LAN Port

2 x RJ-45

Power Mode

ATX

OS

Windows 10, Windows 11, Linux

Certification Information

CE, FCC, RoHS Compliant

USB

6 x USB3.2 Gen1
3 x USB2.0

COM Port

2 x RS-232
3 x RS-232/TTL
1 x RS-232/485

SATA

1 x SATA III

DIO

1 x 8-bit GPIO (4 x GPI, 4 x GPO)

Operating Temp.

0°C ~ 60°C (-4~140°F) with 0.5m/s Air Flow

Storage Temp.

-20 ~ +75°C (-4 ~ +167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.44lbs (0.2kg)

Dimension (L x W)

5.75" x 4.13" (146mm x 105mm)

Ordering Information

ECM-ALUC-1235-A1R
3.5" w/i5-1235U/6COM/9USB/I226,I219V/15W/A1
