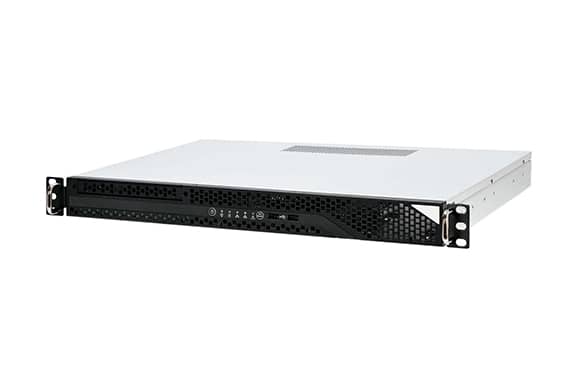

BAX-R1U0

1U Rackmount Chassis

/upload/product/Computing System/BAX-R1U0/【BAX-R1U0】3D Front 02_V01_230809.jpg

导出PDF文件

产品特点
  • 1U Rackmount
  • Up to 12”(W) x 9.6”(D) ATX compliant MB
  • 2 x 3.5" Drive Bay or 1 x 2.5" + 1 x 3.5" Drive Bay
  • 1 x Slim ODD Bay
  • Full Height PCI-e Slot x 1 (via riser card and bracket)
  • 315W 1U Flex 100-240 Vac Power Supply
  • Dimension 381 x 482.6 x 44.4 mm
  • Net weight: 3.67kg(Chassis only)

规格

System Information

  • Processor

    Depend on MB

  • Processor

    Depend on MB

  • Platform Controller Hub

    Depend on MB

  • Watchdog Timer

    H/W Reset, 1sec. ~ 65535sec./min.1sec. or 1min. step

  • H/W Status Monitor

    CPU temperature monitoring
    Voltages monitoring
    CPU fan speed control

  • SBC

    ATX MB

Expansion

  • PCIe

    Full Height PCI-e Slot x 1 (via riser card and bracket)

  • PCIe

    Full Height PCI-e Slot x 1 (via riser card and bracket)

Storage

  • 2.5 Drive Bay

    2 x 3.5" 4TB HDD

  • 2.5 Drive Bay

    2 x 3.5" 4TB HDD

Front I/O

  • USB

    2 x USB 2.0

  • USB

    2 x USB 2.0

  • Power Button

    System power on/off

  • Reset Button

    System reset

  • LED Indicator

    Power status, HDD, LAN activity LEDs

Power Requirement

  • Adapter

    315W 1U Flex 100-240Vac

  • Adapter

    315W 1U Flex 100-240Vac

Mechanical & Environmental

  • Operating Temp.

    0°C ~ 40°C (32°F ~ 104°F)

  • Operating Temp.

    0°C ~ 40°C (32°F ~ 104°F)

  • Storage Temp.

    20°C ~ 75°C (-4°F ~ 167°F)

  • Operating Humidity

    0% ~ 90% Relative Humidity, Non-condensing

  • Dimension (W x L x H)

    381 x 482.6 x 44.4 mm

Ordering Information

  • Ordering Information

    BCC-CASE-R1U0-01R：1U Rackmount Chassis (315W PSU included)

  • Ordering Information

    BCC-CASE-R1U0-01R：1U Rackmount Chassis (315W PSU included)
