COMING SOON
AIB-NIAO

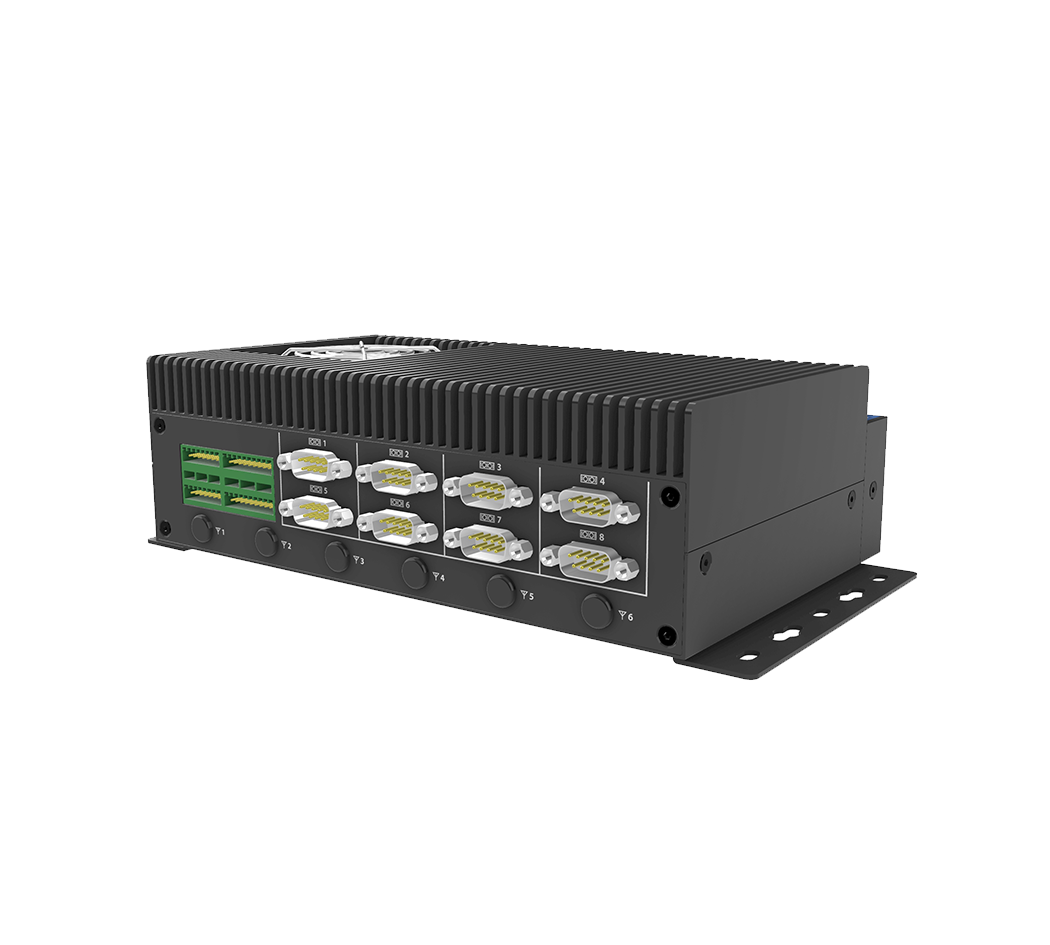

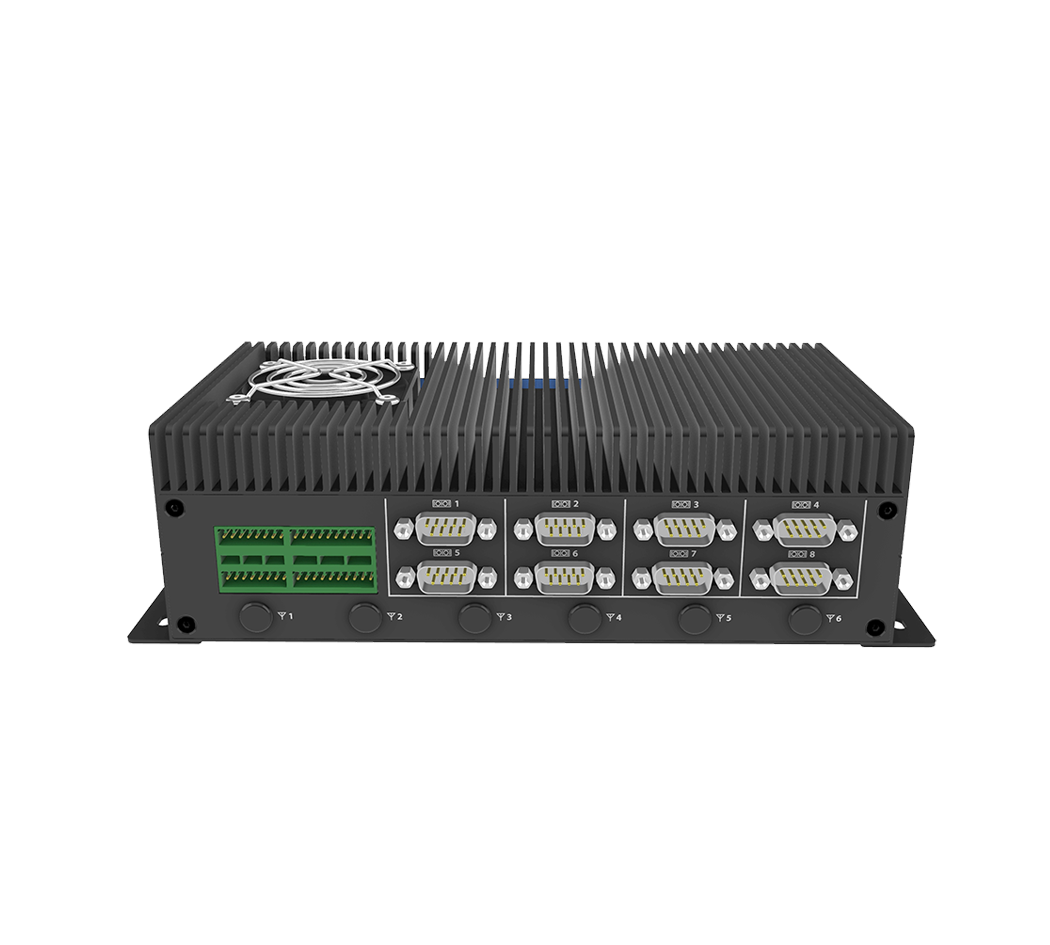

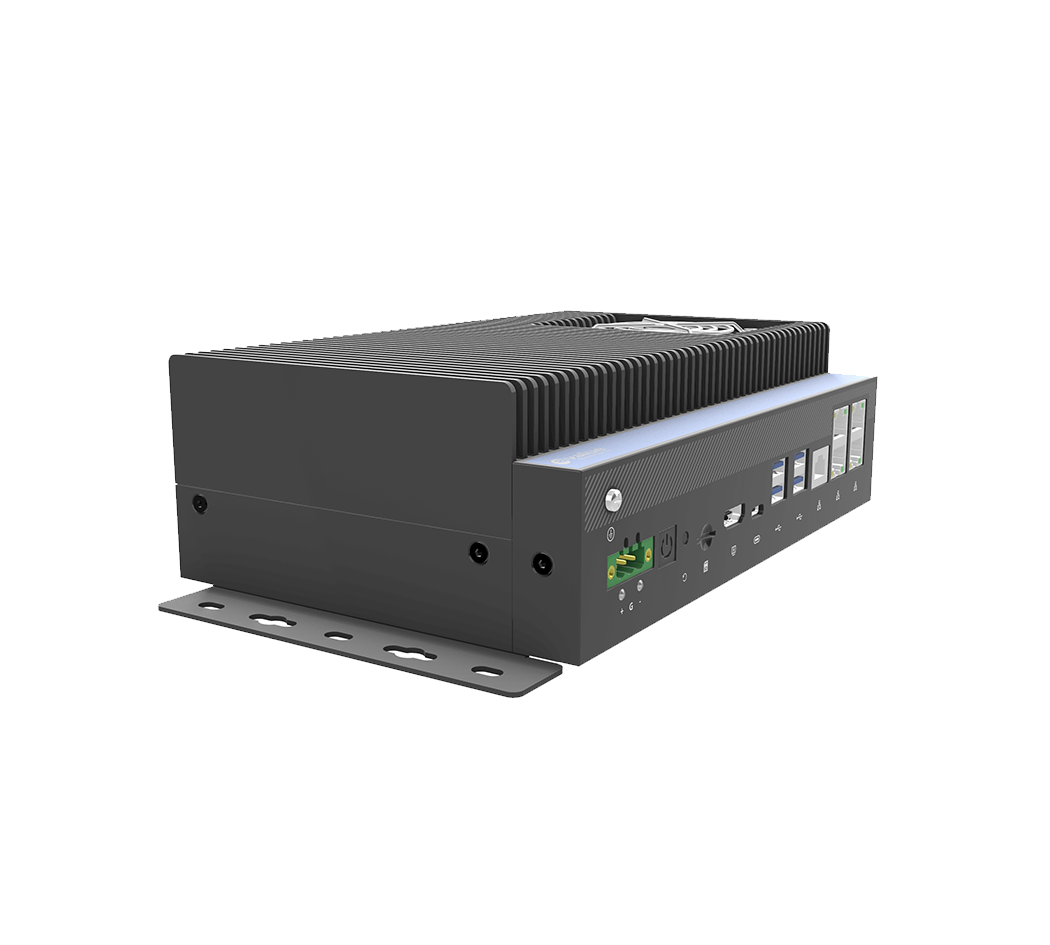

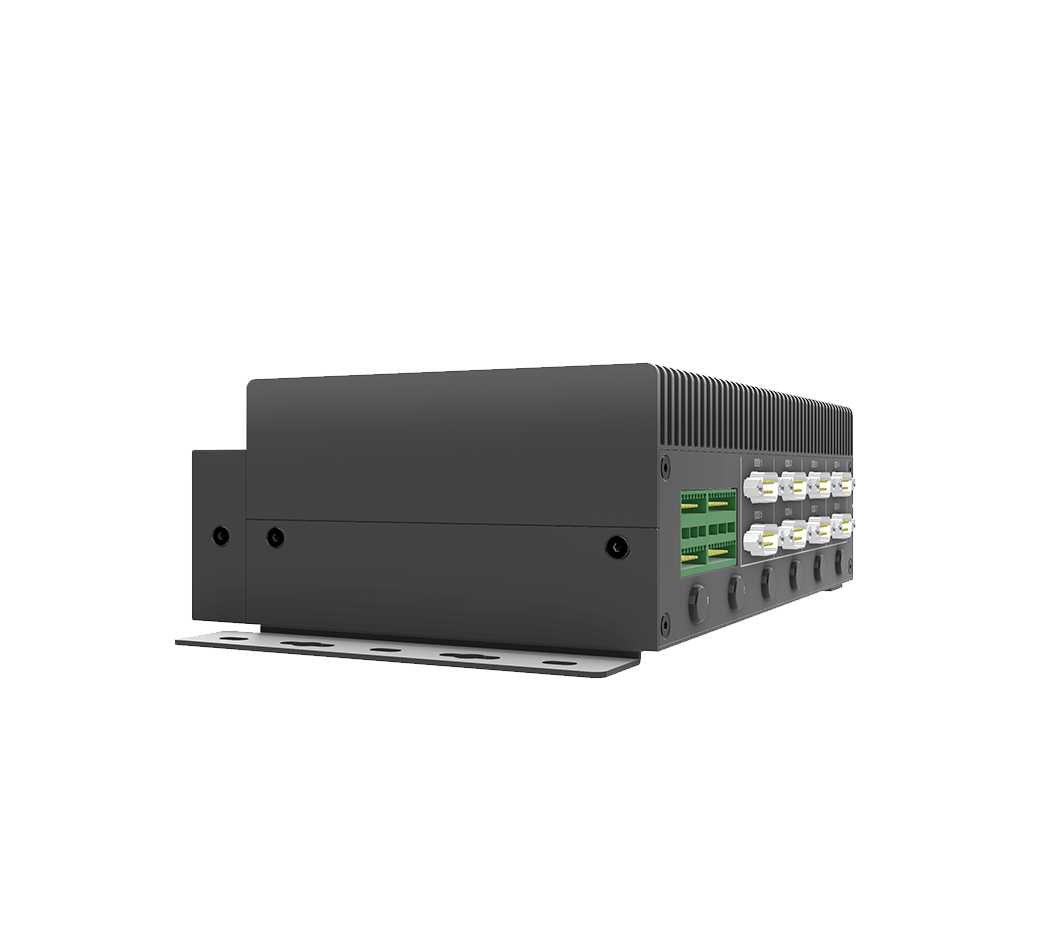

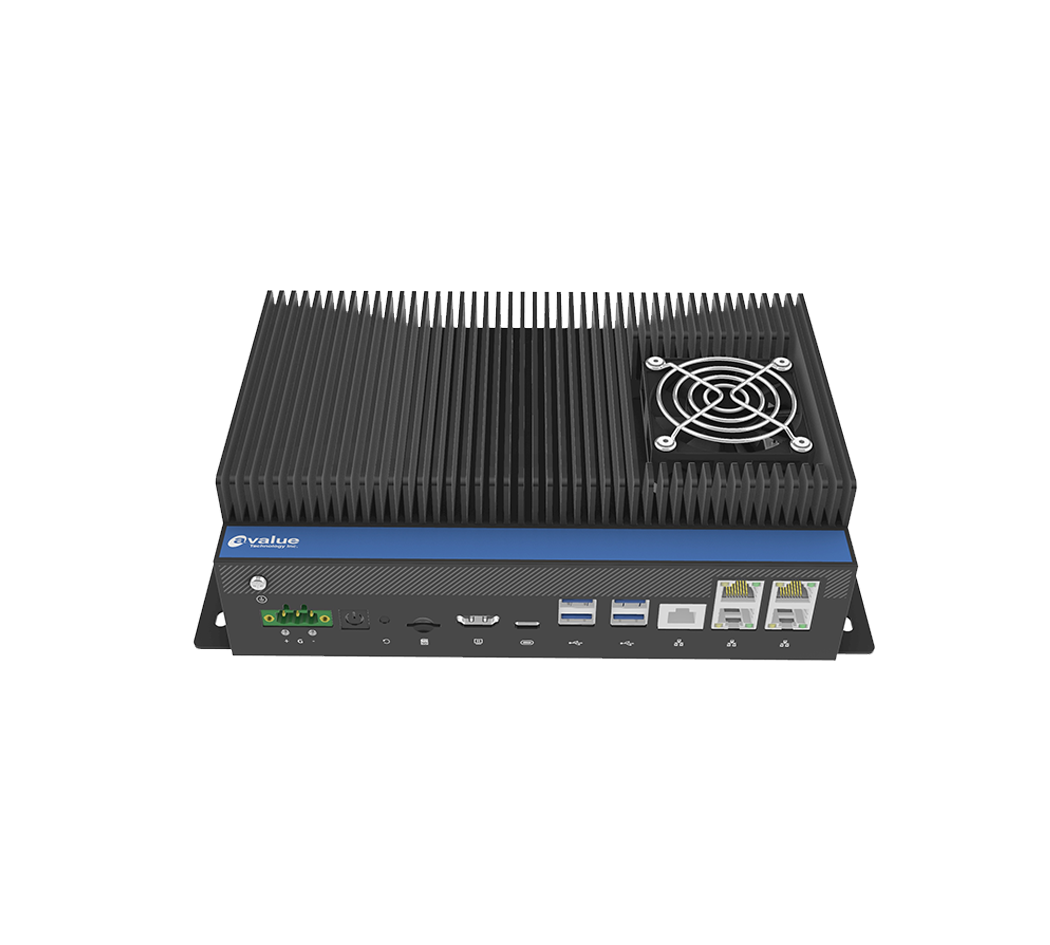

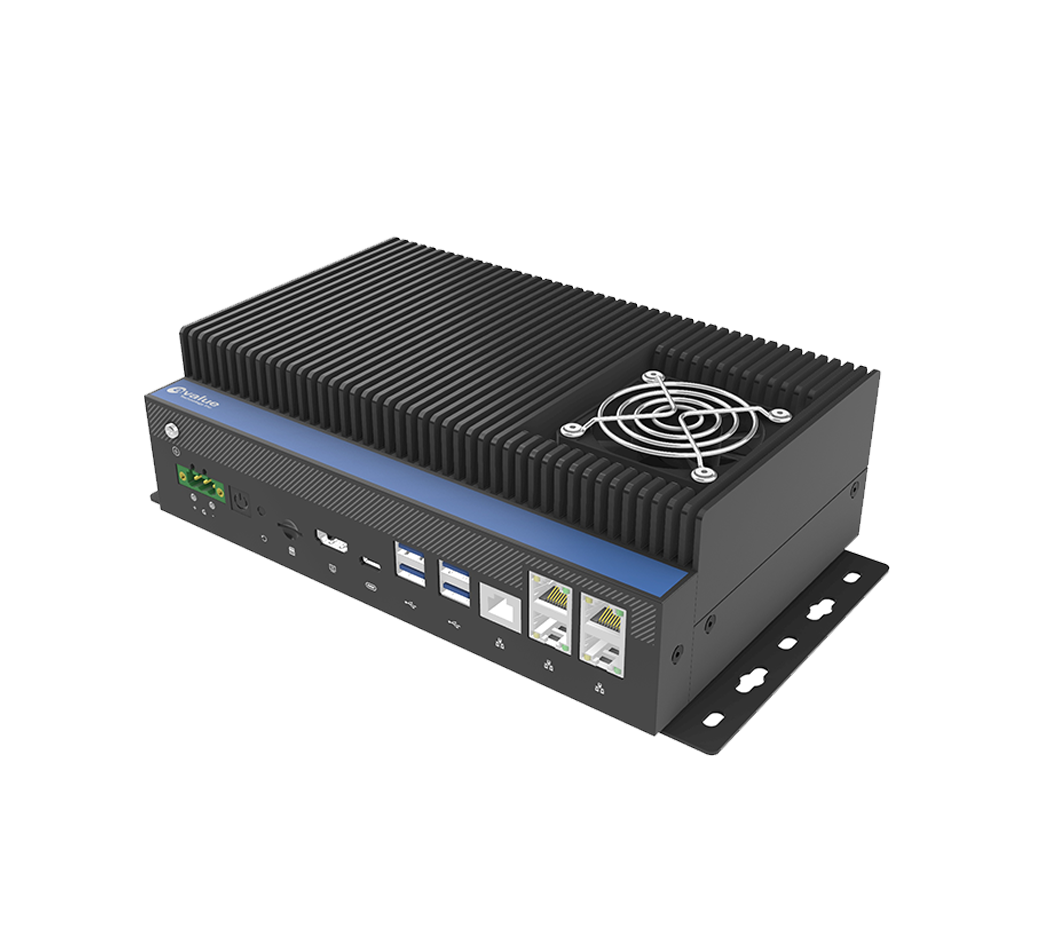

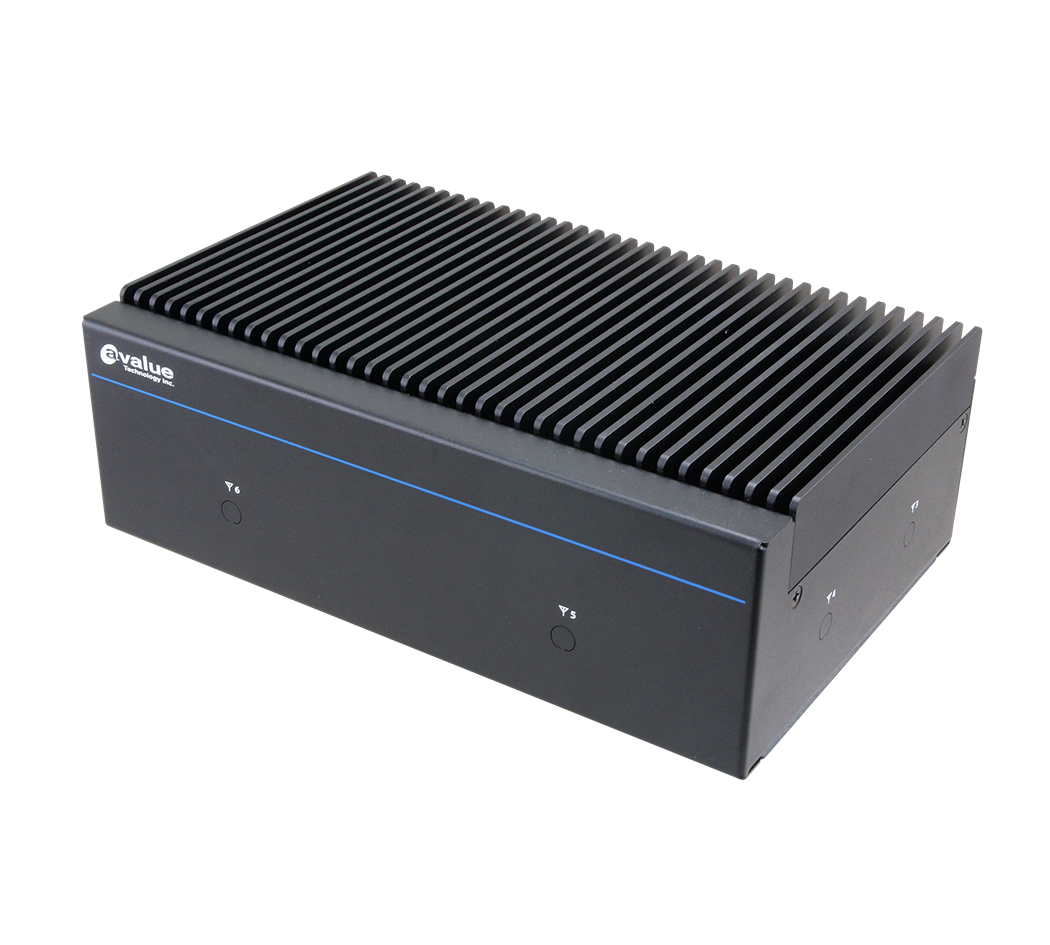

AI box pc NVIDIA AGX Orin 270/275 TOPS
- Jetson AGX Orin 32GB , Jetson AGX Orin 64GB
- 32GM/64GB LPDDR4
- 5ch Gigabit LAN port
- Operating Temp. -25°C ~ 70°C (-13°F ~ 158°F)
- 4 x USB 3.0
产品规格
System Information
-
System Memory
32GM/64GB LPDDR4
-
Processor
Jetson AGX Orin 32GB /
Jetson AGX Orin 64GB -
GPU
NVIDIA Ampere 1792-CUDA® Core /
NVIDIA Ampere 2048-CUDA® Core
AI Performance
-
AI Performance
200 TOPS/
275 TOPS
Expansion
-
PCIe
2x Mini PCIe
-
M.2
1×M.2 M Key
1×M.2 B Key -
Expansion
1xmicro SD Slot
4xNano SIM Socket
Storage
-
Storage
64GB eMMC 5.1
Development Environment
-
OS
Ubuntu 20.04
External I/O connector
-
USB
4 x USB3.0 (type-A)
1 x USB2.0 (type-C) -
COM
2 x CAN FD
16 x GPIO (8x In, 8xOut)
3 x RS232
2 x RS485/422
1 x Debug
4 x SYNC I/O (SYNC_IN/SYNC_OUT/SYNC_PPS) -
Network
5ｘ10/100/1000 RJ45 Powered LAN
-
Display
1 x HDMI 2.0 (typeA)
-
Function key
1 × Power KEY
1× Recovery KEY -
User Expansion
1 x M.2 M Key 2280 size NVMe SSD
1× M.2 B Key for 5G -
Video Encode
H.265
1x 4K60，3x4k30，6x 1080p60，12x 1080p30
H.264
1x 4K60，2x 4K30，5x 1080p60，11x 1080p30/
H.265
2x 4K60，4x4k30，8x 1080p60，16x 1080p30
H.264
2x 4K60，4x 4K30，7x 1080p60，15x 1080p3 -
Video Decode
H.265
1x 8K30，2x 4K60，4x4k30，9x 1080p60，18x 1080p30
H.264
1x 4K60，2x 4K30，5x 1080p60，11x 1080p30 /
H.265
1x 8K30，3x 4K60，6x4k30，12x 1080p60，24x 1080p30
H.264
1x 4K60，3x 4K30，7x 1080p60，14x 1080p30
Mechanical & Environmental
-
Vibration Test
3 Grms,10Hz~500Hz,1h/axis
-
Power Requirement
DC 12V-48V
-
Dimension (W x L x H)
233 x 144x 80 mm
-
Weight
2.3 kg
-
Operating Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
-
Storage Temp.
-40°C ~ 80°C (-40°F ~ 176°F)
-
Storage Humidity
0%-90% non-condensing
