Processor

兆芯开先® KX-6000G系列处理器，最高3.3GHz，4核，4MB高速缓存，CPU TDP最高到35W

System Memory

2个260针 DDR4 3200MHz SO-DIMM插槽，最高可以支持64G内存

I/O Chipset

IT5782VG

BIOS

Byosoft BIOS, 128Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

CPU温度监控
电压监控
CPU风扇转速控制

TPM

Onboard Nationz Z32H330TC-SQN-2701,TCM chip (By BOM Optional)

Board

Mini ITX

Expansion

1 x M.2 Key B 3042/3052 with 1 x PCI-e x1, USB2.0, USB 3.2 Gen1 with 1 x Nano SIM card slot/co-lay FPC connector support WWAN+GNSS (5G China module)
1 x M.2 Key E 2230 support Wi-Fi module (1 x PCI-e x1 & USB 2.0 Signal)
2 x M.2 Key M 2280 (PCI-e x4) slot for storage NVMe SSD

USB

4 x USB 3.2 Gen1
4 x USB 2.0

COM Port

4 x RS232, 2 x RS-232/422/485

SATA

2 x SATA III

DIO

1 x 16-bit GPIO

Power Type

AT/ATX

Spec. & Resolution

1 x HDMI 2.0 3840 x 2160 @ 30Hz, 4096x2160 @ 60Hz
1 x VGA: 1920 x 1080@ 60 Hz
1 x LVDS: 1920 x 1080@60Hz Dual channel 18/24-bits LVDS or 1 x eDP 1920 x 1080@60Hz (2 Lanes)

Multiple Display

三显

Audio Codec

瑞昱 ALC888 高清音频解码控制器

Audio Interface

Mic-in, Line-out

Audio Amplifier

瑞昱 ALC105立体声D级 2 x 3W 4Ω

LAN Chipset

3 x Realtek RTL8111K 1G (15W) or Realtek RTL8125B 2.5 G (35W) Ethernet

LAN Port

3 x RJ-45

Operating Temperature

15W CPU, 0~60°C (32~140°F) with 0.5m/s air flow
35W CPU, 0~55°C (32~131°F) with 0.5m/s air flow

Storage Temperature

-40~ 75°C (-40~167°F)

Operating Humidity

40°C @ 95% 相对湿度, 无凝结

Dimension (W x L x H)

6.7" x 6.7" (170mm x 170mm)

Weight

0.40公斤

Power Requirement

DC in +12V~24V

Power Mode

AT/ATX 模式

Dimension (L x W)

6.69" x 6.69" (170mm x 170mm)

Ordering Information

EMX-KX60G-CA-A1R

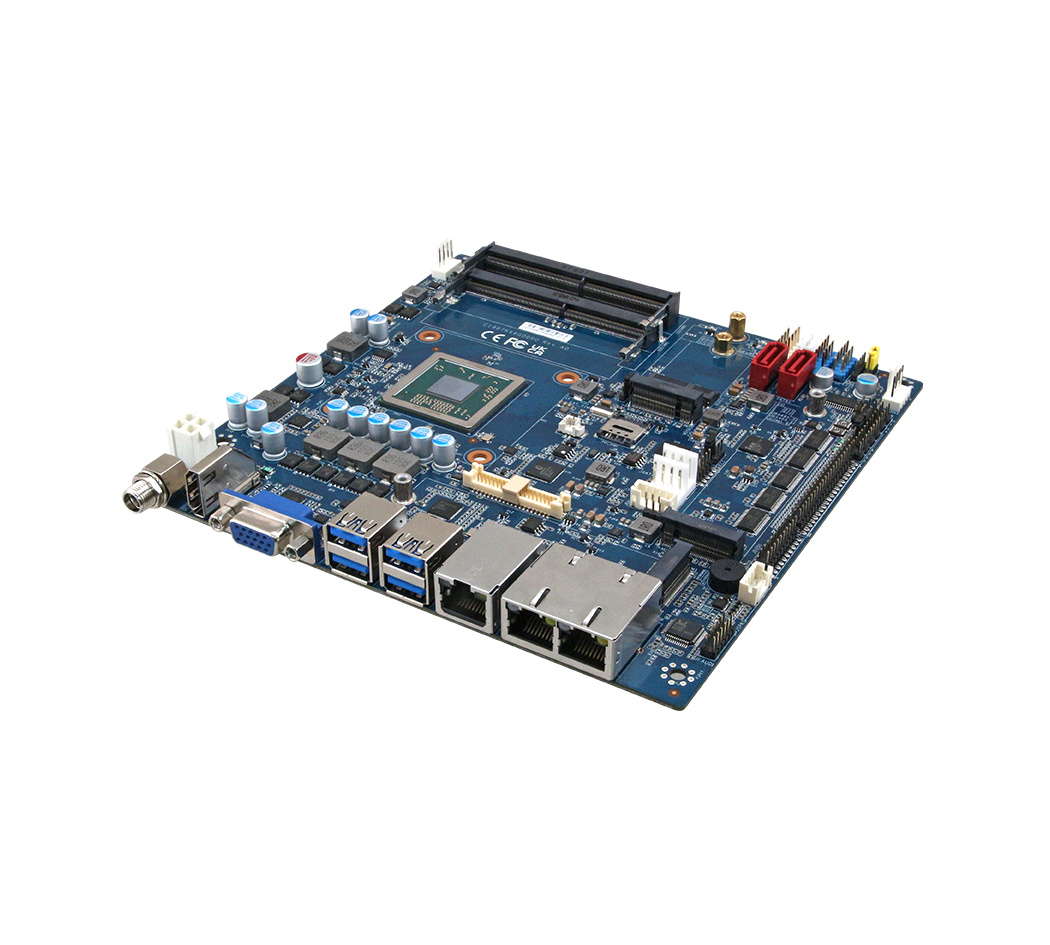

Zhaoxin KX-6000G 15W, RealTek RTL8111K-CG, Thin Mini ITX SBC Motherboard

EMX-KX60G-DC-A1R
Zhaoxin KX-6000G 35W, RealTek RTL8125BG-CG, Thin Mini ITX SBC Motherboard
